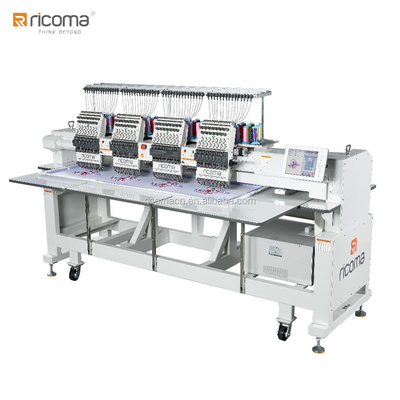

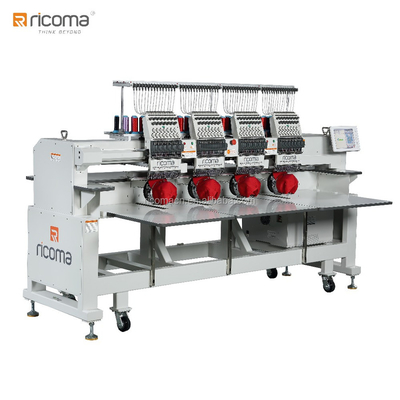

RICOMA 4 Heads Cap Embroidery Machines All Servo Tubular Computerized CHS-1204/CHS-1504
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | RICOMA |
| Certification | CE/ISO9001 |
| Model Number | CHS-1204/CHS/1502 |
| Minimum Order Quantity | 1 Set |
| Price | $1.00 - $2.00 |
| Packaging Details | Standard package is vaccum package, dimensions: 3440x1000x1600mm and weight: 600kg; Wood package is available with extra cost, dimensions: 3460x1060x1830mm and weight 750kg. |
| Supply Ability | 100 Set/Sets per Month |
Product Details
| Condition | New | Place Of Origin | Guangdong, China |
|---|---|---|---|
| Brand Name | RICOMA | Model Number | CHS-1204/CHS/1502 |
| Type | Cap Embroidery Machine | Operation | Computerized |
| Head Number | 4 Heads | Needle Number | 12/15 |
| Overall Dimensions | 250*13000*1780mm | Worktable Size | 250*13000 |
| Head Interval | 400mm | Embroidery Area | 400*450 |
| After-sales Service Provided | Overseas Service Center Available | Certification | CE/ISO9001 |
| Weight | 600KGS/1653LBS | Speed | 1000SPM |
| Computer | 10'' Touch Screen Computer | Language | 12 Languages |
Product Description
Product Description
Product Application
4-Head Al Servo Tubular Embroidery Machine:
The CHS model is the latest addition to our popular “value priced” multi-head embroidery machine line. Its new 10″ High Definition LCD Touch Screen System allows users to learn and operate the panel much faster than with previous models. The 10” panel directly evolved from the 7” screen on the TC machine line making upgrading from single head equipment to multi head machines much easier. The intuitive features of the touch screen will have you up and running in no time at all with more features than ever before.
Main Features
▪ Suitable for flat bed embroidery, cap embroidery and finished garments embroidery
▪ The embroidery area is 17.7″ x 17.7″ and can be extended to 20.0″ x 17.7″10.4 “
▪ Maximum speed 1000 SPM
▪ 270° wide cap frame unit
▪ User-friendly operation interface makes it easy to operate and increase efficiency
▪ Pre-set hoops to avoid hitting frame
▪ On-board lettering
▪ USB Port Ready
▪ One-step tracing makes it easier and more efficient for any user
▪ 50 Million stitch memory (Largest in the industry)
▪ Multiple languages available
▪ 110V/60Hz or 220V/50Hz available
Certifications
Detailed Images
Machine Parts
Name: Rotary Hook
Brand: Koban
Original: Japan
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Our machine is always packed carefully. Big machine by water-proof package, small machine by carton box or wooden box.
