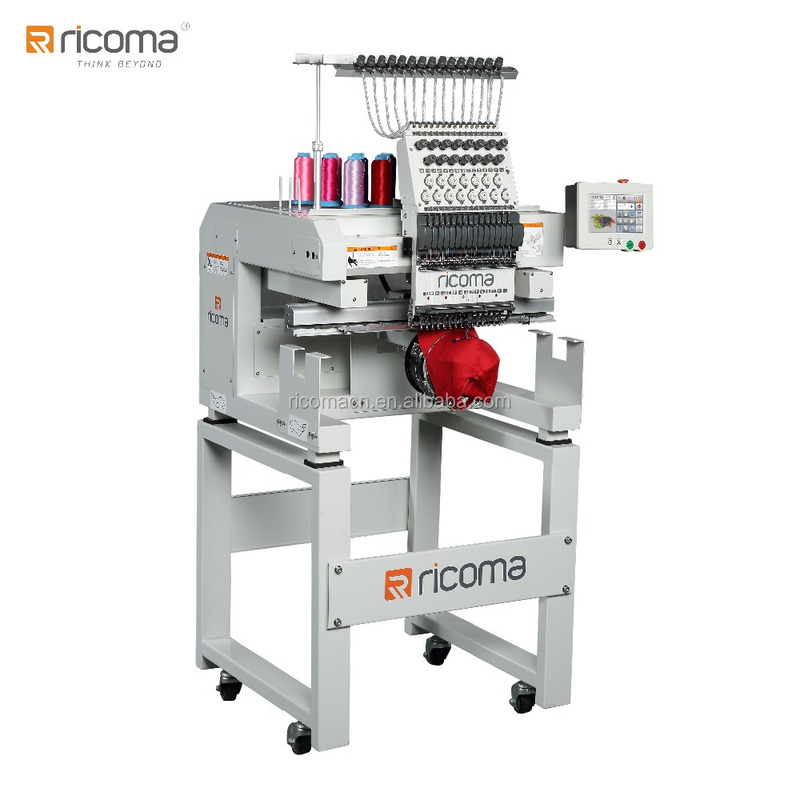

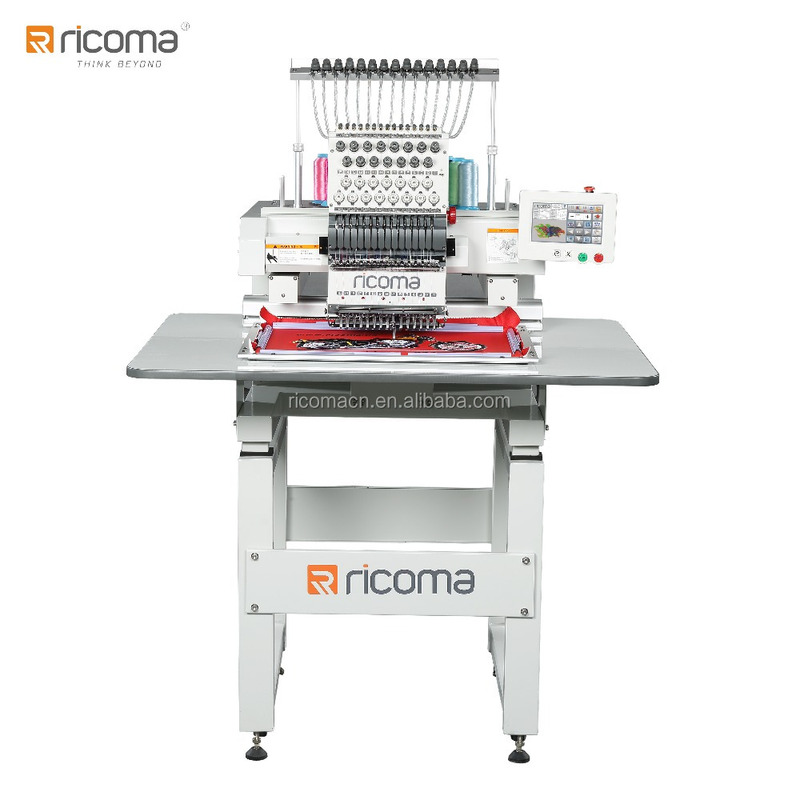

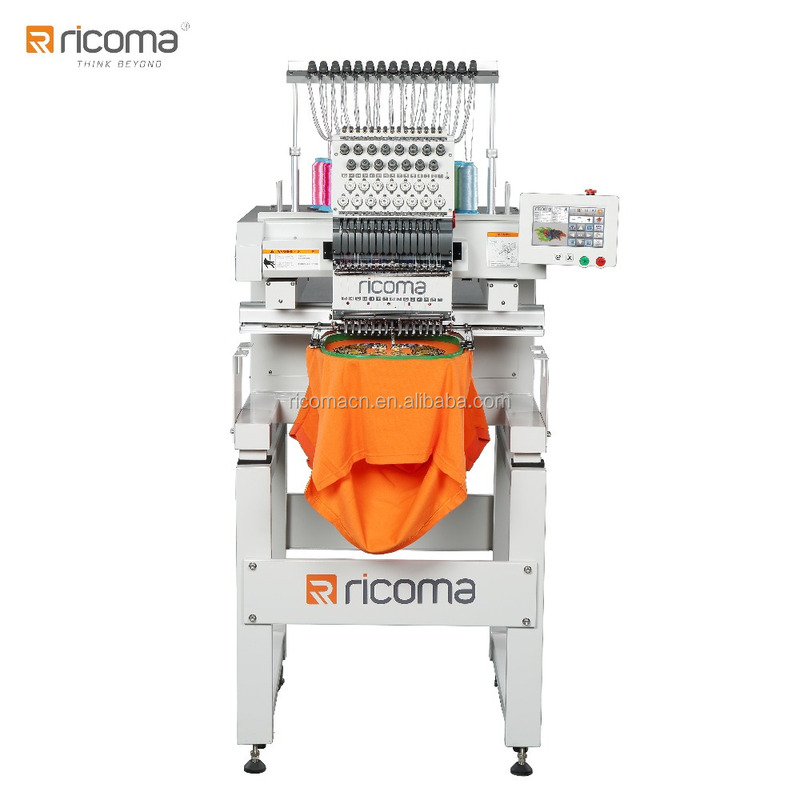

RICOMA Single Head Automatic Embroidery Machine Portable MT-1201/MT-1501

  • img.alt
  • img.alt
  • img.alt
Place of Origin Guangdong, China
Brand Name RICOMA
Certification CE/ISO9001
Minimum Order Quantity 1.0 Sets
Packaging Details Crate package size 1210MMX870MMX930MM .Gross Weight:200KG
Supply Ability 100 Set/Sets per Month
Product Details
Applicable Industries Garment Shops, Manufacturing Plant Condition New
Place Of Origin Guangdong, China Brand Name RICOMA
Type Cap Embroidery Machine Operation Computerized
Overall Dimensions 830*770*1600mm Warranty 1 Year
Worktable Size 830*770mm Head Interval 0mm
Embroidery Area 540*350mm After-sales Service Provided Overseas Service Center Available, Free Spare Parts, Online Support, Video Technical Support
Net Weight 145KGs/320LBs Language 16 Languages
Speed 1200SPM Computer 7" Touch Screen Computer
Certification CE/ISO9001
Leave a Message
Product Description

PORTABLE TUBULAR EMBROIDERY MACHINES

WITH 7” HD TRUE COLOR TOUCH SCREEN SYSTEM

RICOMA Single Head Portable Embroidery Machine MT-1201/MT-1501RICOMA Single Head Portable Embroidery Machine MT-1201/MT-1501

RICOMA Single Head Portable Embroidery Machine MT-1201/MT-1501



MAIN FEATURES

  1. Designed for embroidery on bulky and large items, such as bags, bed sheets, drapery, towels, and more. Perfect for caps, shirts and any other finished products
  2. Maximum speed of 1200 SPM for single head and 1000 SPM for two heads
  3. Small and portable for easier desktop placement
  4. Newly developed small sewing arm guarantees better embroidery quality on caps and small items
  5. Multiple languages available, including English, Chinese, Spanish, Portuguese, Turkish, Dutch, French, German, Thai, Arabic and more
  6. User -friendly control interface with useful functions that make it easy to operate and increases efficiency
  7. Machine reads DST and DSB formats
  8. Hoops sizes are pre-programmed to avoid hitting frames
  9. When setting color change sequence, operator is able to add appliqué, sequin, boring or cording. There is no need to change it in the parameters page
  10. Built-in key for 172° and 196° for easy machine maintenance
  11. Frame offset and frame outlining function keys have been added to the control interface for easy appliqué embroidery and frame change
  12. High Definition true color 7” LCD Touch Screen
  13. Multi-angle rotational and adjustable control panel bracket for better viewing options
  14. New ergonomic touch screen allows easy and comfortable operation by right thumb
  15. Recessed USB port to protect USB flash drive
  16. Main operation area located on the right side of interface, convenient for right thumb operation
  17. One-step trace button directly on the main screen
  18. External 100° button and trimming button
  19. Maximum embroidery area: 500 x 360 mm, or 20″ x 14″
  20. Automatic thread trimmer
  21. 270° wide angle cap system
  22. USB input or direct transmission from PC via Ethernet port or wireless
  23. Networkable and Wi-Fi capable
  24. Automatic color change
  25. Intelligent thread break detection
  26. Pre-sew design trace capable
  27. Automatic memory retention
  28. Servo motor 150W - the lowest power consumption in the industry
  29. Built-in universal power supply, 110V/60Hz or 220V/50Hz self-adaptable worldwide
  30. DC36V micro-step motor for driving the X & Y axis to ensure low noise and less vibration
  31. Heavy duty steel stand with wheels to ensure both stability and mobility
  32. Plywood package
  33. Emergency stop button



Specifications:



Needle

 12/15
Head 1
Max Speed 1200SPM for single and 1000SPMfor two heads
Motor Main Servo Motor
X/Y Stepping Motor
Operation Box 7'' True Color LCD Touch Screen
Hook Japanese Koban Hook
Memory Capacity 20,000,000Stitches or 200 designs
Memory Media USB Memory Stick
Safety Device Error Code Message,Emergency Stop
Cap Embroidery 270°wide angle cap system
Power AC90 - 240V, 50 – 60 Hz self-adaptable





Hoops/ Frames Included:

2 x round hoops 9cm (3.5”) per head

2 x round hoops 12cm (4.7”) per head

2 x round hoops 15cm (5.9”) per head

2 x round hoops 20cm (9”) per head

2 x square hoops 29x29cm (12x12”) per head

2 x oval hoops 54x35cm (21x13.5”) per head



CAP ATTACHMENTS INCLUDED:

2 x cap rings that snap into cap station for preparation and embroidery per head

1 x snap-on and snap-off hoop station per machine for easy preparation of caps

1 x cap driver per head



Optional Device:

1. W2214 (56X40cm)Sash Frame & Extended Table (For MT single head only)

2. Sequin device

3. Boring device

4. Cording device

5 Robot frame

6. Belt hoop

7 .Laser positioning system

8. 8 in1 hoop set

9.Mighty Hoop

10.HoopMaster
